Description

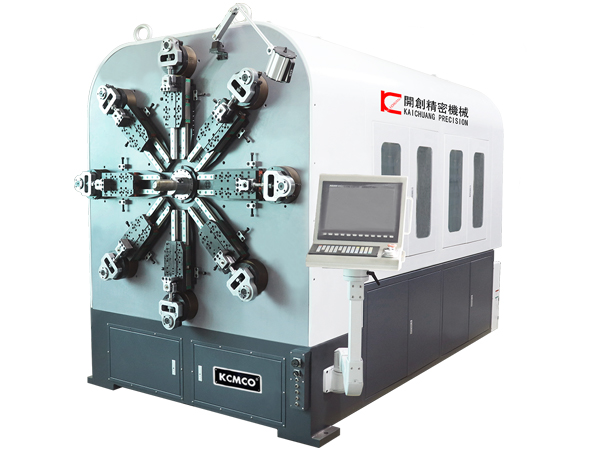

KCT-1260WZ 12-axis camless CNC versatile spring forming machine, referred to as 6.0mm camless spring machine, machining line diameter φ2.0-6.0mm, suitable for the production of various precision compression spring, tension spring, torsion spring, scroll spring, tower spring, flat wire springs, special-shaped spring and molding line and other products, widely used in furniture, mold, machinery, agricultural machine, motorcycle, automobile, railway and aviation etc..
Parameters
| 機 型 | Model | KCT-1260WZ |
| 軸 數(shù) | Axis Count | 12 Axis |
| 加工線徑 | Wire Size Range | φ0.2-6.0mm |
| 最大彈簧外徑 | Max Outside Diameter | φ120mm |
| 最大送線速度 | Max Feeding Speed | 105m/min |
| 旋繞比 | Spring Index | 4 |
| 送線輪組數(shù) | Wire Feeding Wheel Count | 4 pairs(組) |
| 送線伺服電機 | Feeding Servo Motor | 7.5kw |
| 成形伺服電機 | Forming Servo Motor | 4.4kw*8 |
| 轉(zhuǎn)芯伺服電機 | Quill Servo Motor | 1.8kw |
| 轉(zhuǎn)線伺服電機 | Wire Rotation Servo Motor | 5.5kw |
| 卷曲伺服電機 | Spinner Servo Motor | 1.8kw |
| 機大尺寸 | Dimension(L*W*H) | 3300x1800x2300mm |
| 機器重量 | Weight | 8000kg |
| 電 源 | Power AC | 3-380VAC 50Hz |
Our company's KCT-1260WZ 12-axis camless CNC versatile spring rotating forming machine by Taiwan Windows7 operation control system, reference imported from Japan Yaskawa servo motor, using the unique non cam and no arm design tool are controlled independently by eight servo motors, the turret eight shaft, wire feeding shaft, a shaft, a rotating core transfer line the shaft and the shaft of a curl, a crank connecting rod forming system, wire feeding system, transfer system, straightening system and rotary core system etc.. In addition, the machine can be equipped with hydraulic scissors device, cutting noise is small, the damage to the mandrel and the machine is zero; at the same time, it greatly improves the processing range of spring, not only has the characteristics of fast forming, accurate accuracy and stable performance, but also more convenient and easy to operate.
